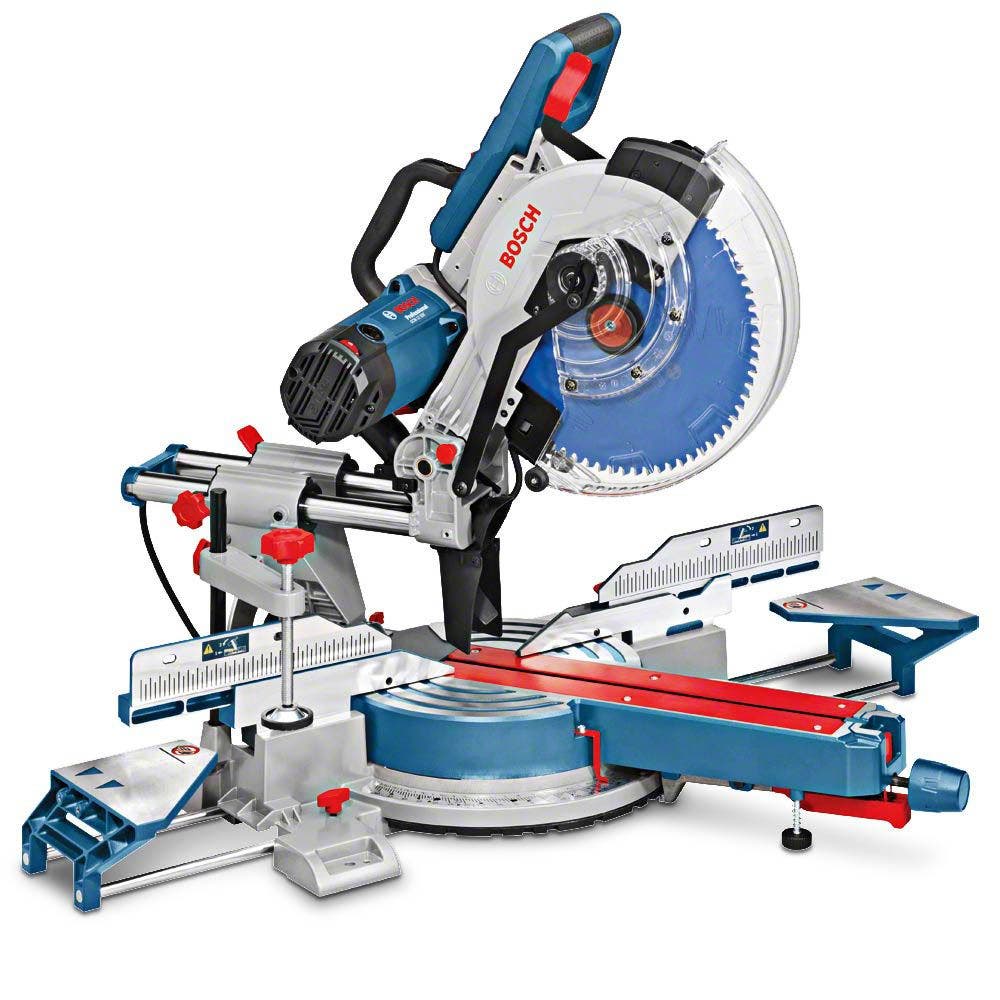

High cutting capacity and variable speed for a wide variety of applications

• Vertical cutting capacity of 120 mm
• Variable speed for adapting the cutting speed to the material
• SDS saw blade changes
• Speed preselection of 3,100 – 4,000 rpm
• Intuitive bevel lock
• Integrated table extensions for material support
• Easy changing of the saw blade
• Bevel setting of up to 47° on both sides

Specifications:

• Cutting capacity, 0° 85 x 370 mm
• Cutting capacity 0° with spacer (max. vertical) 120 x 200 mm
• Cutting capacity 0° with spacer (max. horizontal) 70 x 400 mm
• Cutting capacity, 45° mitre 85 x 250 mm
• Cutting capacity, 45° incline 60 x 360 mm
• Mitre setting 52 ° L / 60 ° R
• Bevel setting 47 ° L / 47 ° R
• Tool dimensions (width x length x height) 860 x600 x530 mm
• No-load speed 3,100 – 4,000 rpm
• Saw blade diameter 305 mm
• Saw blade bore diameter 30 mm
• Weight 28.6 kg
• Rated input power 1,800 W

Noise/Vibration:

• Sound pressure level 92 dB(A)
• Sound power level 105 dB(A)
• Uncertainty K 3 dB

Sawing Wood:

• Vibration emission value ah 2.5 m/s²
• Uncertainty K 1.5 m/s²
