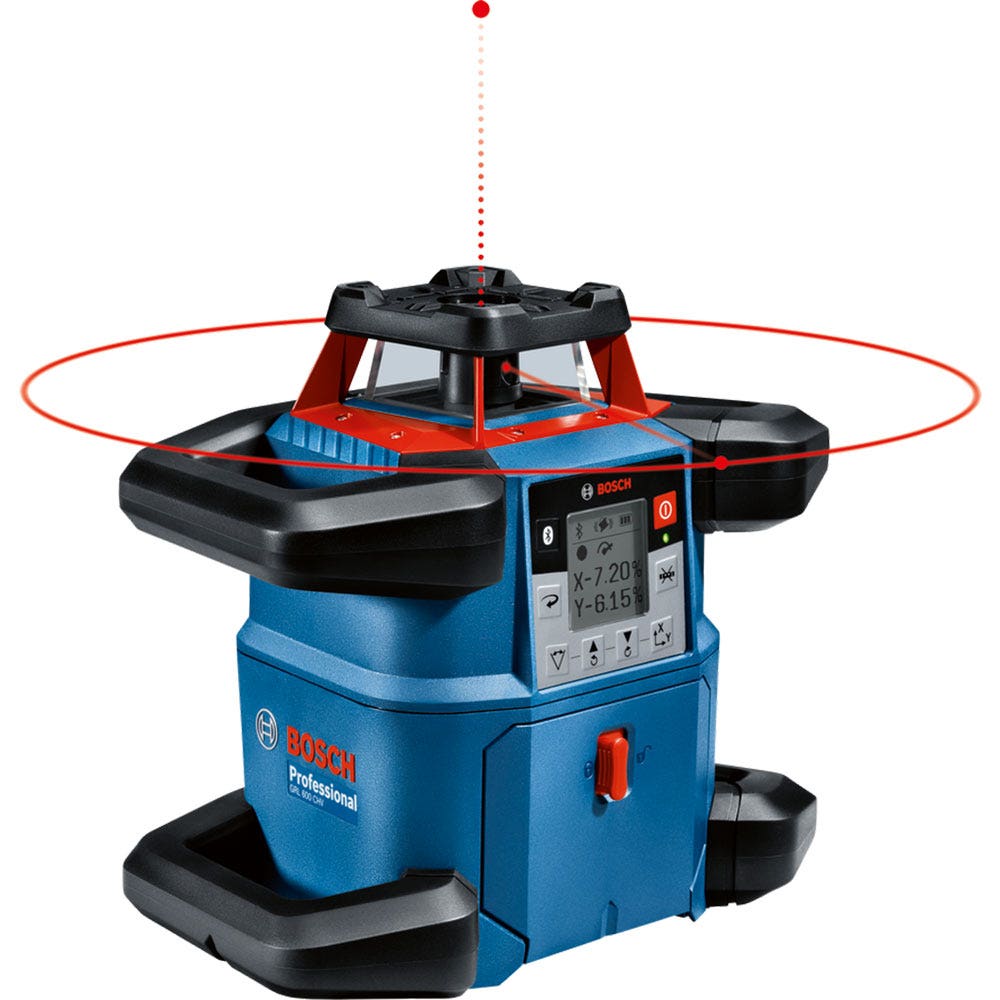

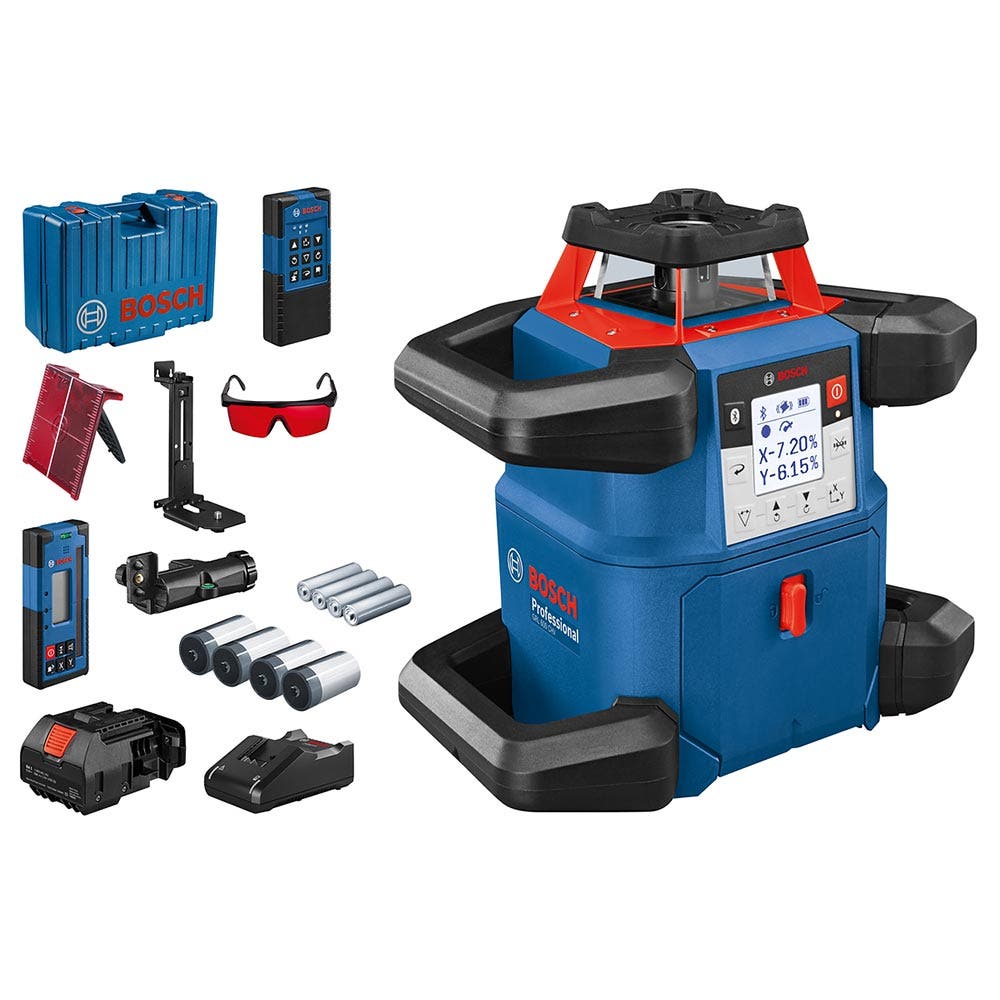

The Bosch GRL 600 CHV saves times with dual-slope setting - extend the range of applications with the digital dial-in of grade (X and/or Y). This tool is compatible with any Bosch 18V battery up to 8.0Ah and has run time up to 60 hours with ProCore18V 4.0Ah battery. This tool is tough for the jobsite with IP 68 rating against dust and water (including battery compartment) and 2m drop rating.Operation is made easier with a screen on main unit to visualize and simplify main functions including dual-slope setting. The tool is Bluetooth connected for single-operator use and includes the UCAL function for simple calibration and precise results via the Levelling Remote App.Includes: GRL 600 CHV Rotary Laser, LR 60 Laser Receiver with RB 60 receiver bracket, RC 6 Remote Control, WM 6 Wall Mount, GAL 18V-40 LI battery charger, BA 1 Battery Adapter, (4) D Batteries, (4) AA Batteries, red laser glasses, red target plate, tripod carrying straps, carrying case
- Dual-slope setting with digital dial-in of grade (X and/or Y)

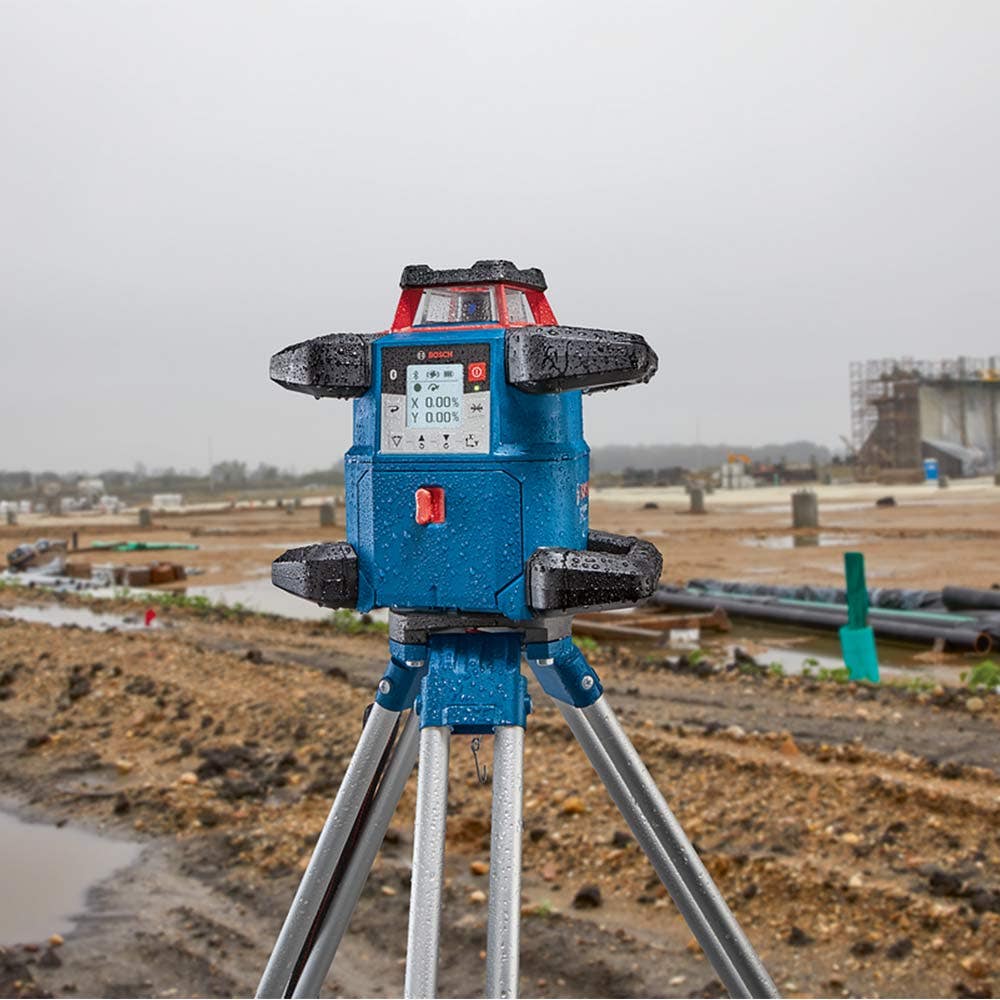

- IP68 rating plus 2m drop rating
- Bluetooth connectivity with additional features in the Levelling Remote App
- Simple and precise user calibration via the app
- Intuitive and easy-to-understand screen and functions on tool
- Long battery life - Up to 60 hours with ProCore 18V 4.0Ah Battery
Specifications
- Leveling Accuracy: ±0.05 mm/m
- Working Range (Diameter) W/ Lr 60 Receiver: 600m
- IP Rating: IP 68
- Self-Leveling Range: ±5°
- Single/Dual Axis Slope Operation: 8.50%
- Rotational Speed: 150/300/600 min-1
- Scan Angle For Line Operation: 0º/10º/25º/50º
- Tripod Mount: 5/8 In.-11
- Laser Class: 2
- Approx. Operating Time With Li (4.0Ah Procore18V) Battery: 60h
- Approx. Operating Time With Alkaline Batteries: 70h
- Weight W/ Li (4.0Ah Procore18V) Battery: 4.2 kg
- Weight W/ Alkaline Batteries: 4.8 kg

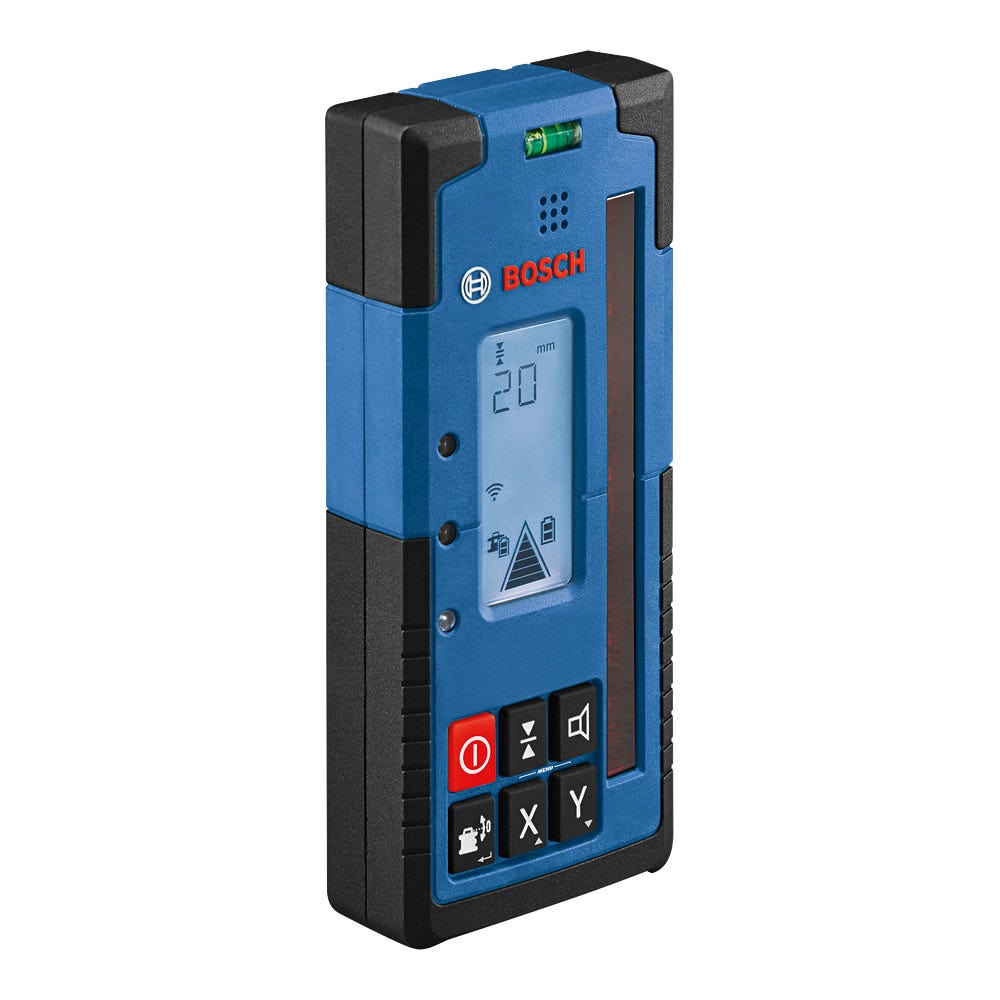

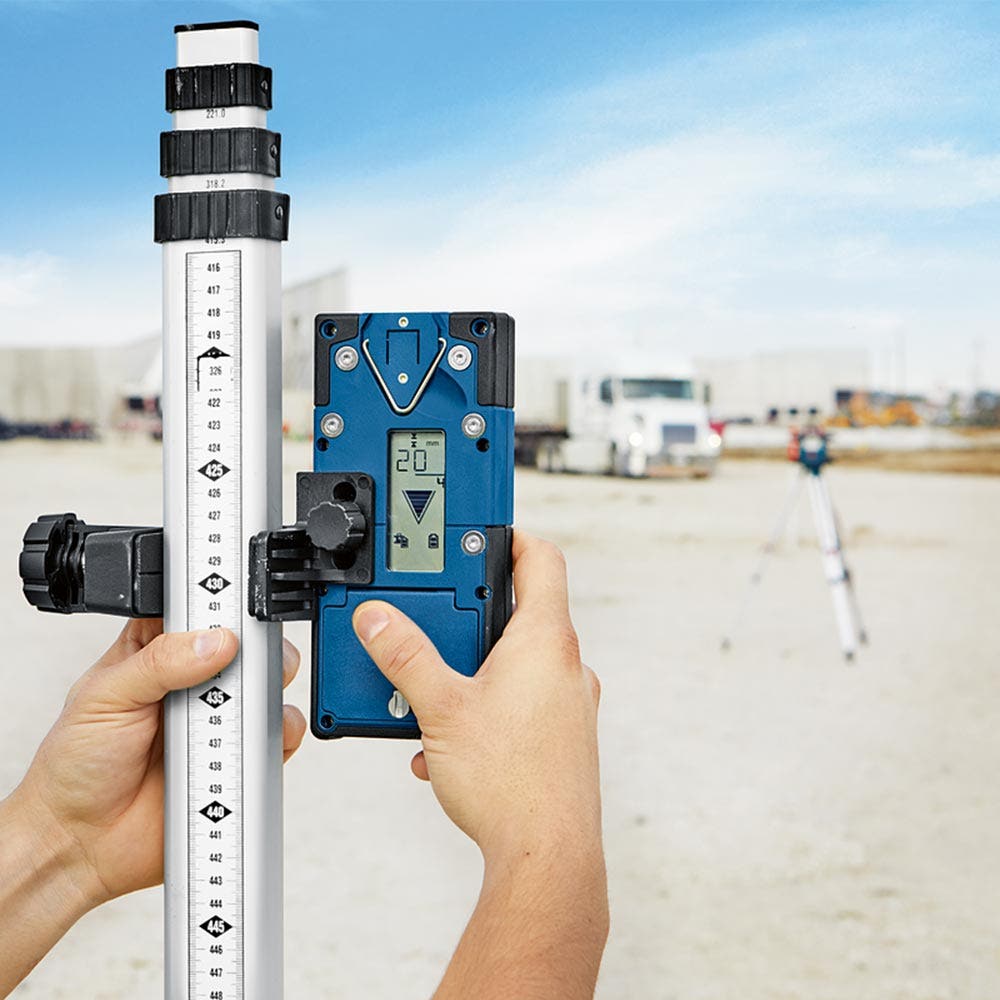

- Receiver (LR 60) Reception Area: 125mm
- User calibration: Yes, with app
Specification
Specifications
| Part No | 0601061F40 |
|---|---|
| Barcode | 4059952519357 |
| Laser Colour | Red |
| Laser Class | 2 |
| Voltage | 18V |
| Brand | Bosch |
| Warranty | 6 Year |
| Net Weight (kg) | 9.6 |
| Product Length (mm) | 327 |
| Product Width (mm) | 188 |
| Product Height (mm) | 278 |
