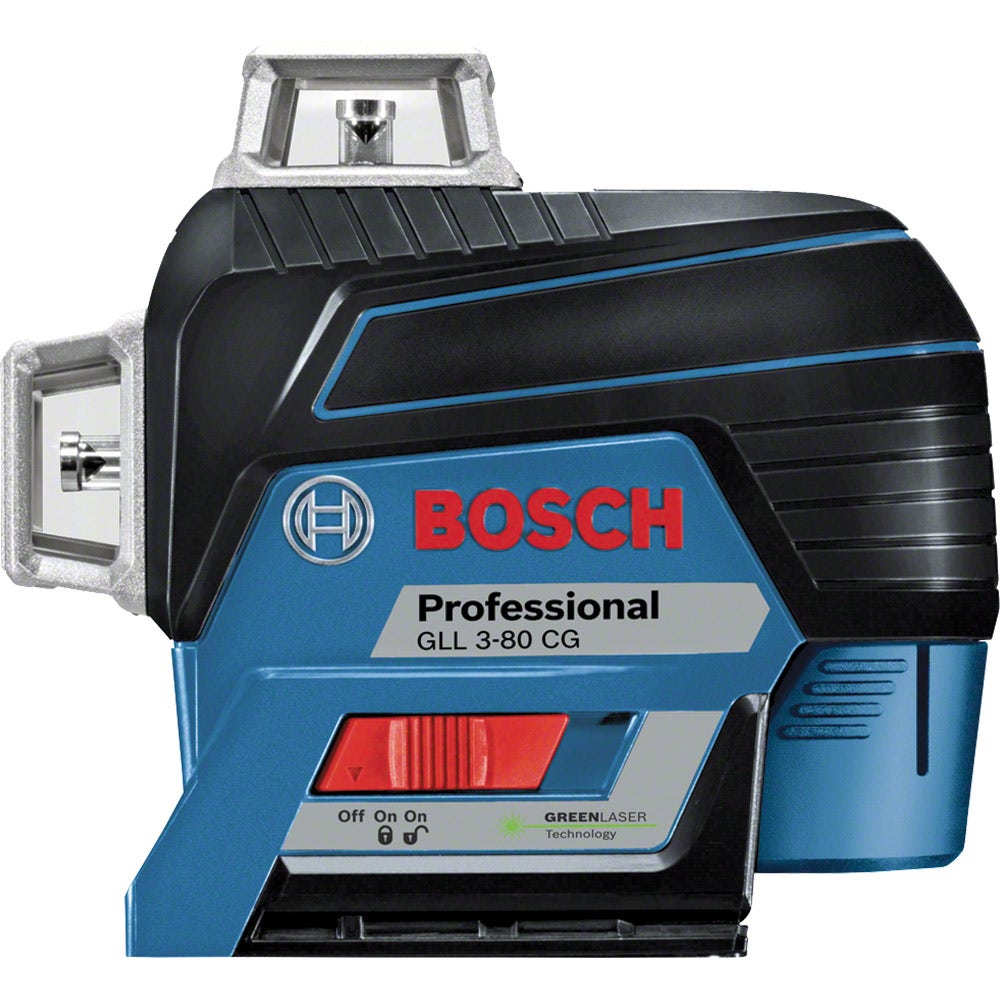

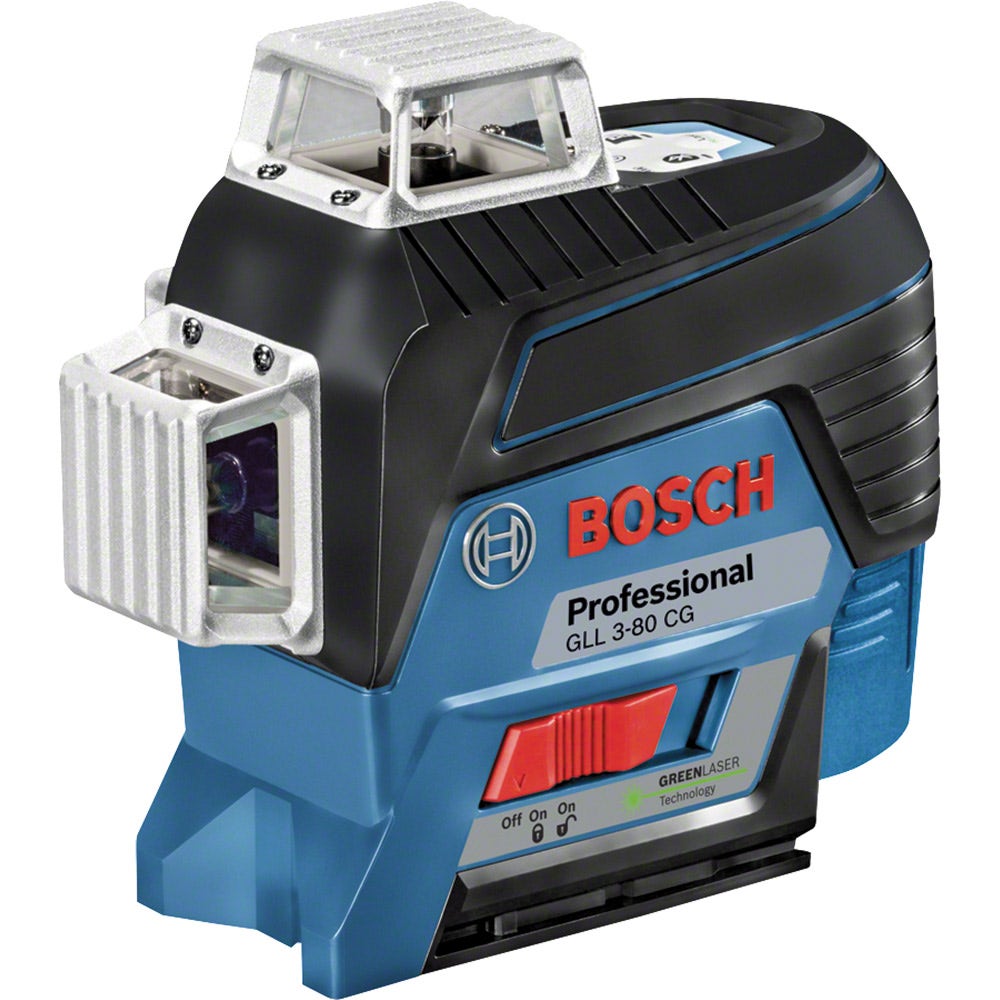

The GLL3-80CG Green-Beam Multi Line Laser is suitable for most indoor marking and alignment applications.

With its Green-Beam technology, the Bosch GLL3-80CG provides a high level of accuracy with up to 4 x times visibility (compared to red lasers).

The GLL3-80CG is compatible with Bosch's RM3 Motorised Base.

Features

• Self-Levelling
• High level of precision/accuracy (± 0.2mm/m)
• Three 360 degree beams/lines
• One 360 degree horizontal line
• Two 360 degree vertical lines
• Pendulum lock ensures safe transport
• Bluetooth connection to your smartphone for remote control usage and contactless adjustment of the tool
• Extended working range (up to 120m) when used with optional receivers (LR7)

Specifications

• Operating Range (without receiver): 30m (Radius)
• Operating Range (with receiver): 120m (Diameter)
• Accuracy: ± 0.2mm/m
• Self-Levelling Range: ± 4° degrees
• Levelling Time: 4 seconds
• Dust and Splash Protection: IP54
• Laser Class: 2
• Laser Diode: Line 500 - 540 nm, <10mW
• Laser Colour: Green
• Operating Temperature: -10 - 40 degrees Celsius
• Storage Temperature: -10 - 70 degrees Celsius
• Power Supply: 4 x 1.5V LR6 (AA batteries), 12V Li-Ion Battery (optional)
• Operating Time (max): 4 hours (in 3-line mode), 6 hours (12 Li-Ion Battery)
• Tripod Thread: 1/4" & 5/8"
• Weight (approx.): 0.9kg

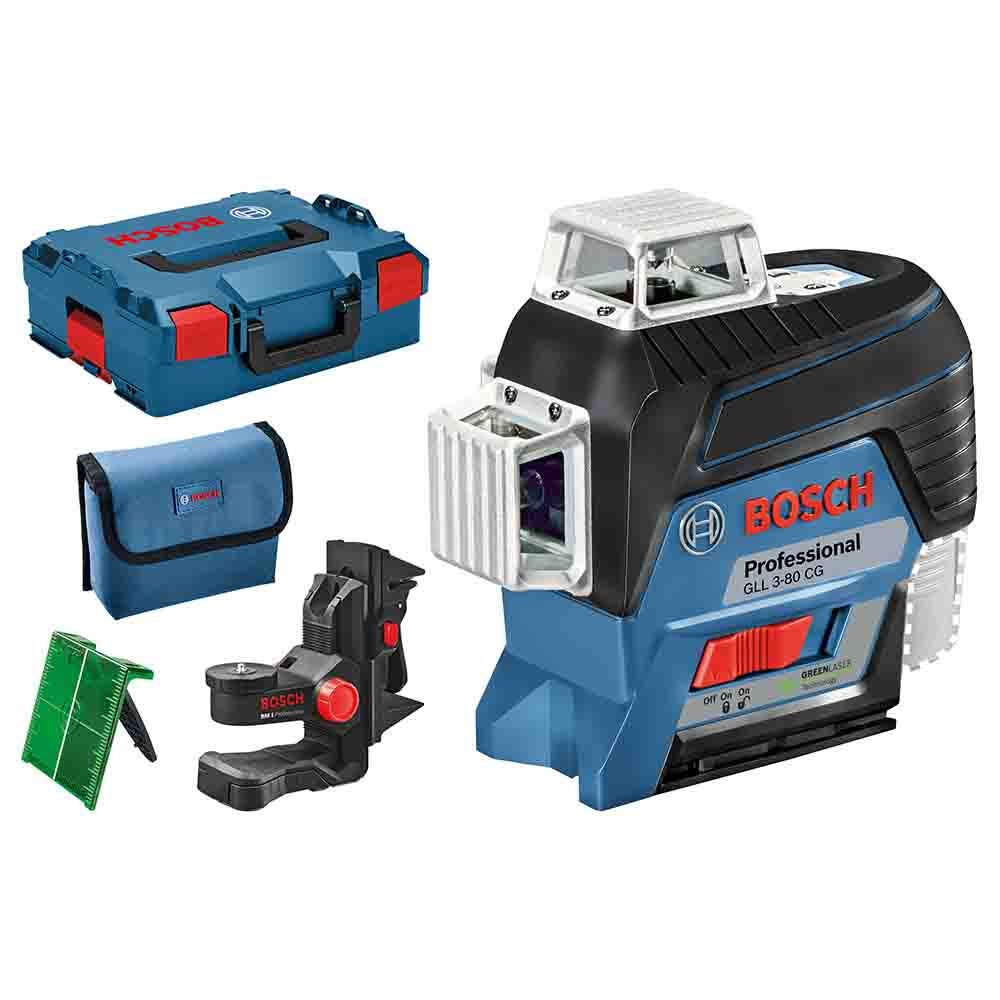

Includes

• GLL3-80CG Multi-Line Laser Level
• BM1 Wall/Floor Mounting Bracket
• Laser Target Plate
• 4 x 1.5V (AA) Alkaline Batteries
• Nylon Pouch
• Carry Case
• User Manual

Specification

Specifications

Videos & Manuals

Videos

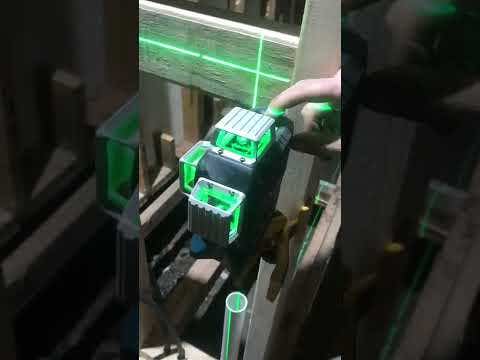

Rundown of the Bosch Laser Measuring Multi Line 3x360 Green Beams w. Bluetooth GLL3-80CG
