Description

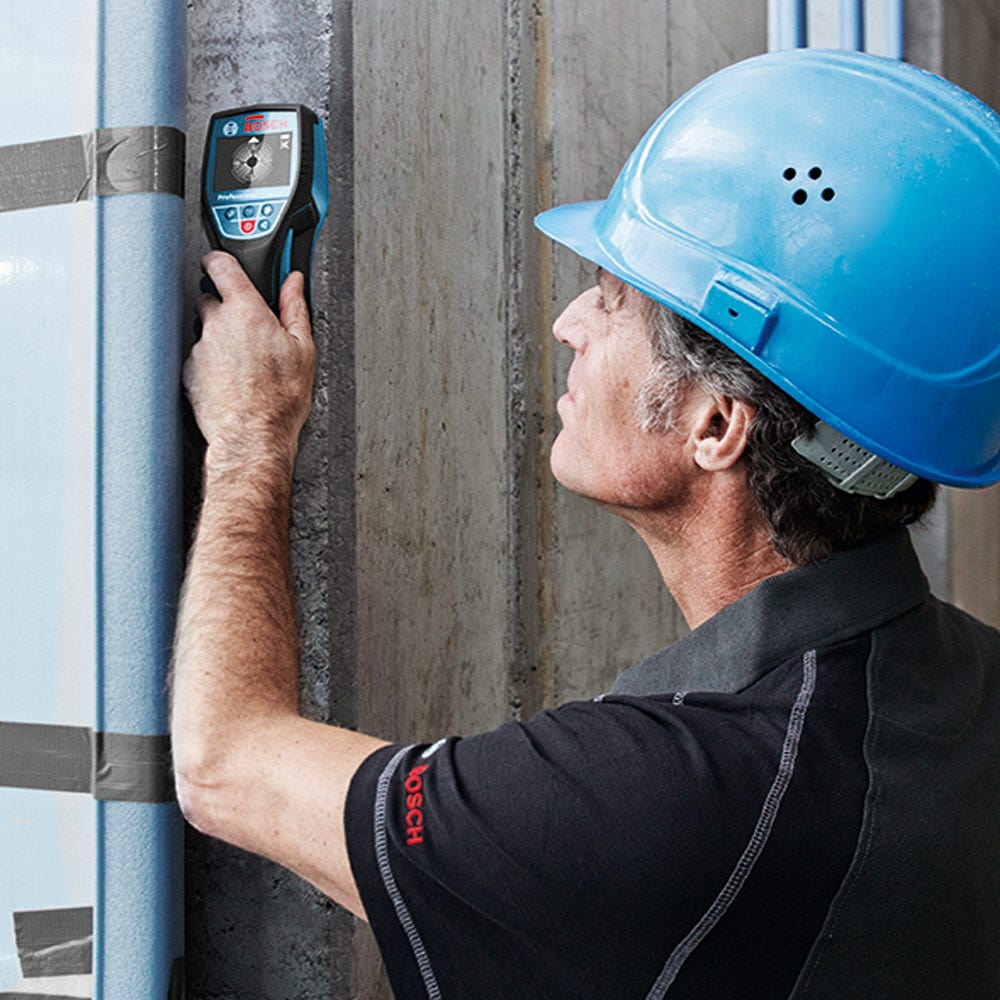

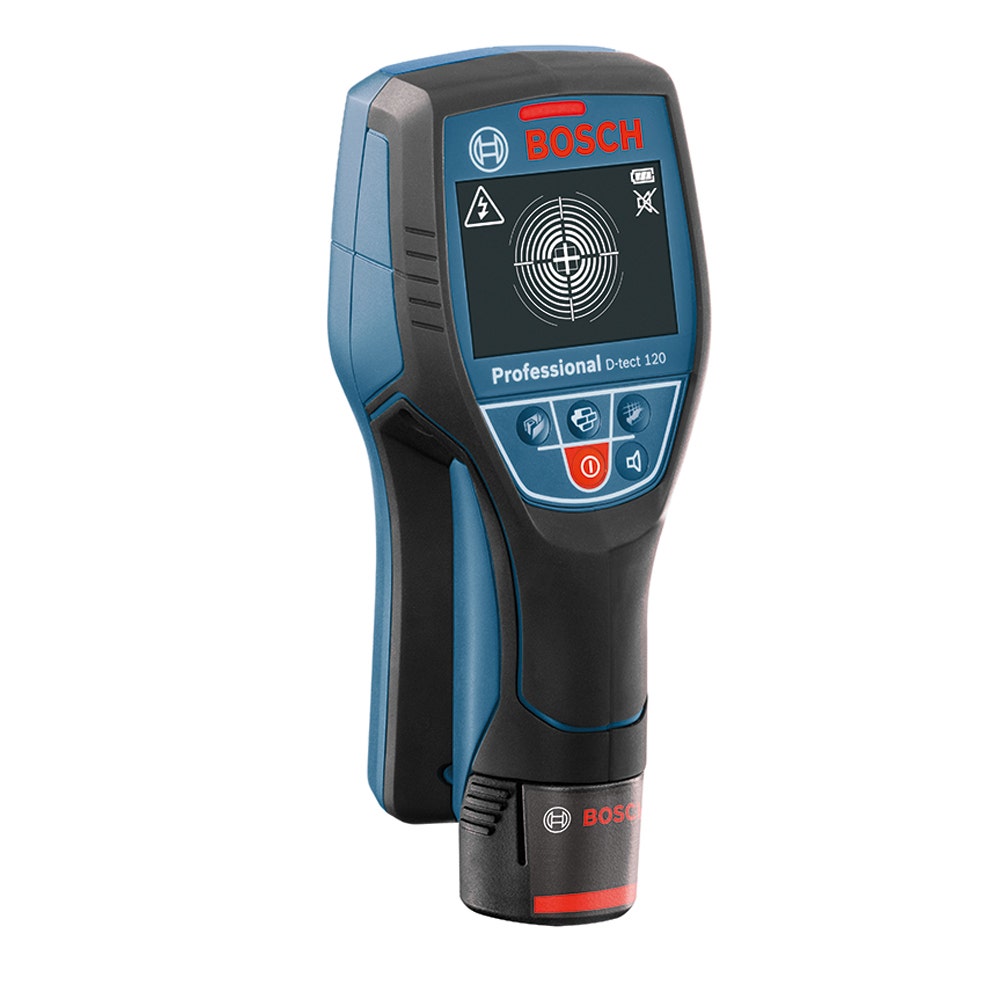

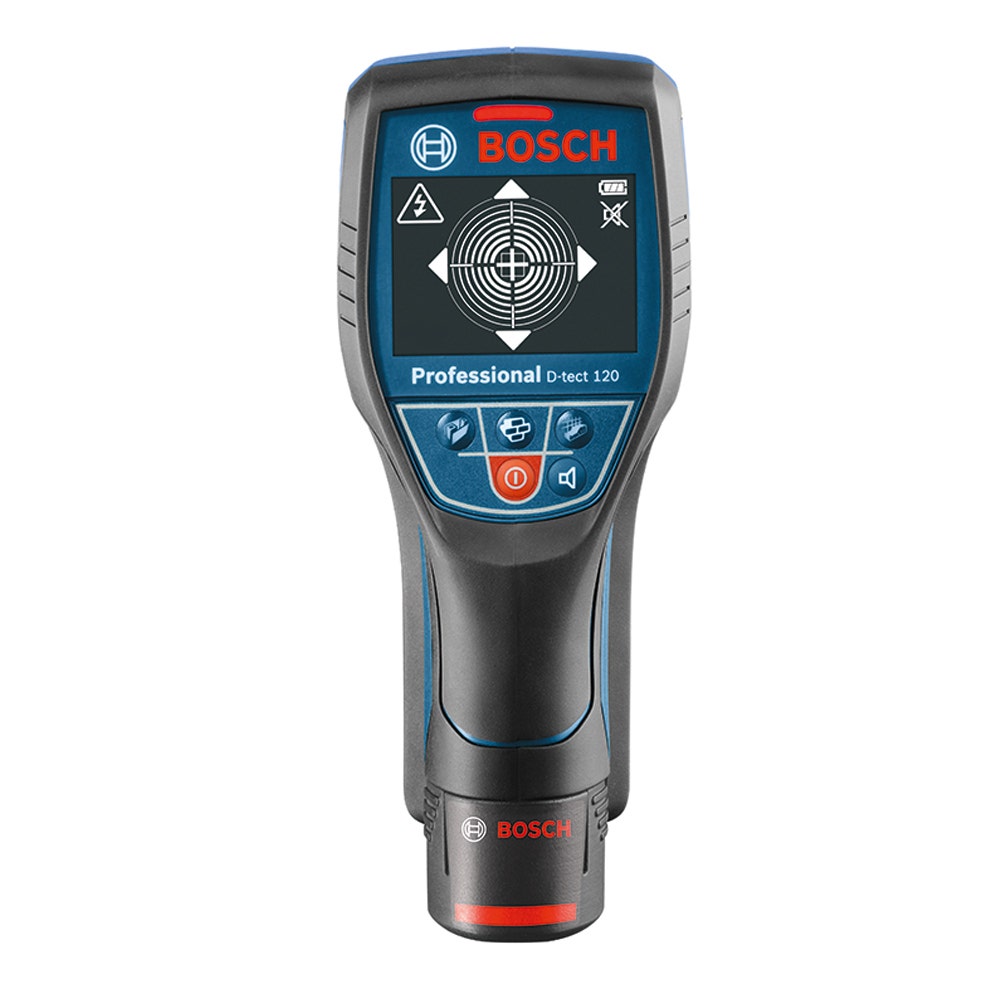

The detector D-Tect 120 Professional is an intuitive radar scanner developed for almost all materials. Spot measurement provides accurate detection on narrow surfaces, while the centre finder shows the precise location of an object's centre. Additionally, Dual Power Source technology allows for use with both a 12 V Li-ion battery or standard alkaline batteries.

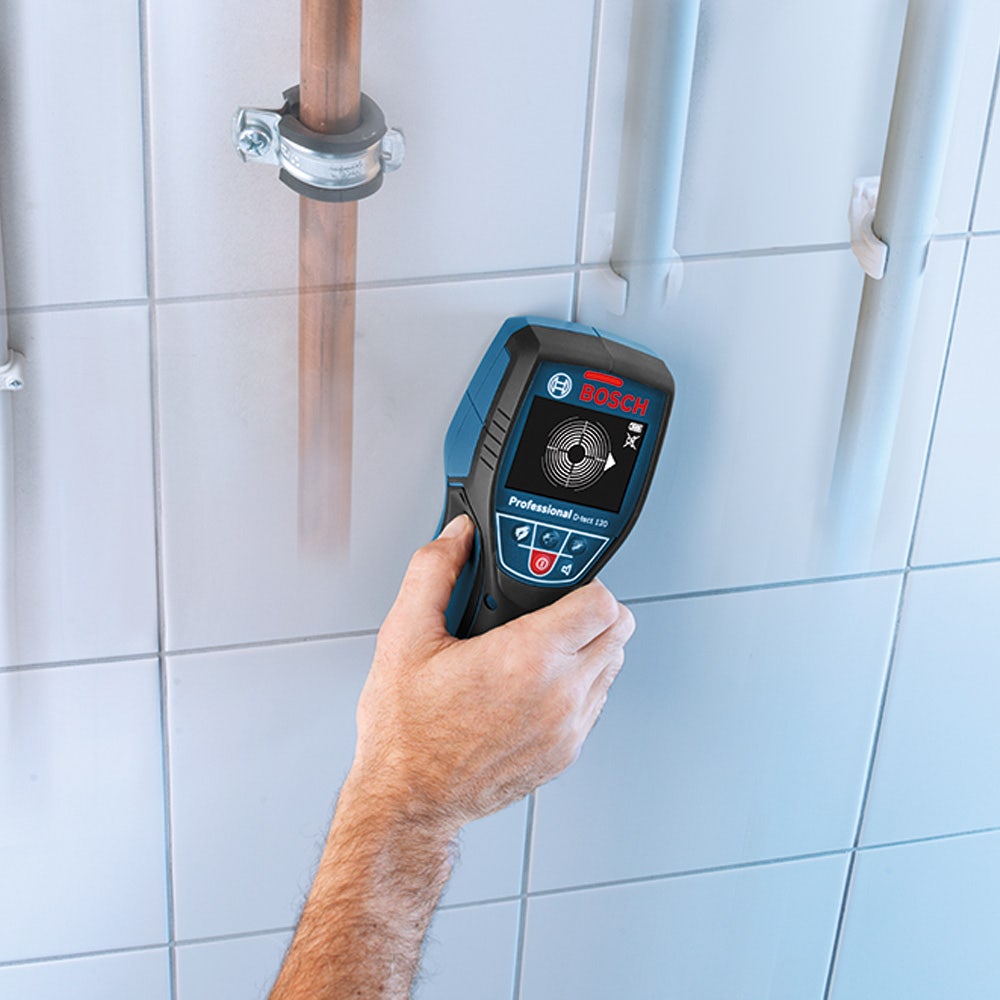

It is suitable for a range of craftsmanship disciplines to locate pipes filled with water and cables as well as to avoid drilling mishaps when performing carpentry, plumbing, electrical, and HVAC applications.

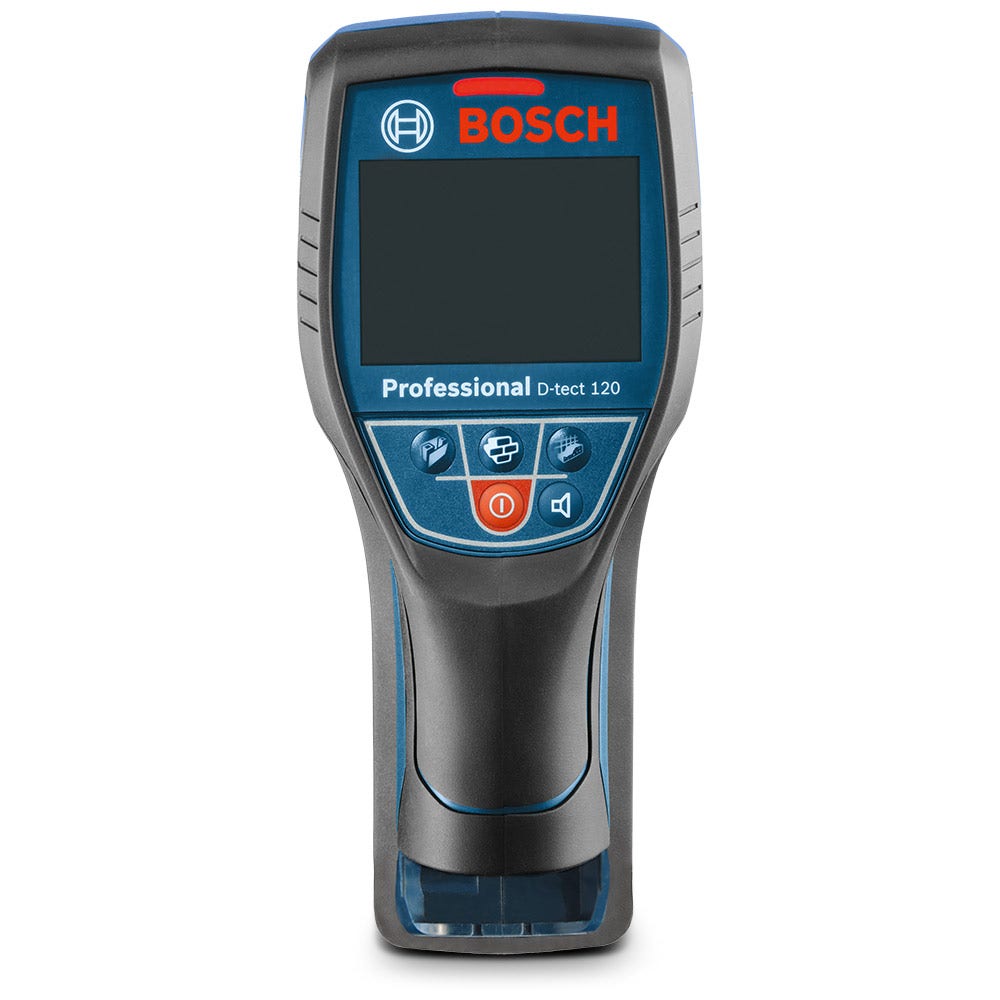

The D-tect 120 Professional offers a simple user interface with three self-explanatory selection buttons for adjusting to various applications and it is able to detect objects at depths of up to 12 cm. Audio and visual signals notify the user when objects are detected in the wall.

Intuitive radar scanner for almost all materials.

• Spot measurement provides accurate detection on narrow surfaces
• Centre finder offers visual guidance, to clearly identify the precise location of the object's centre

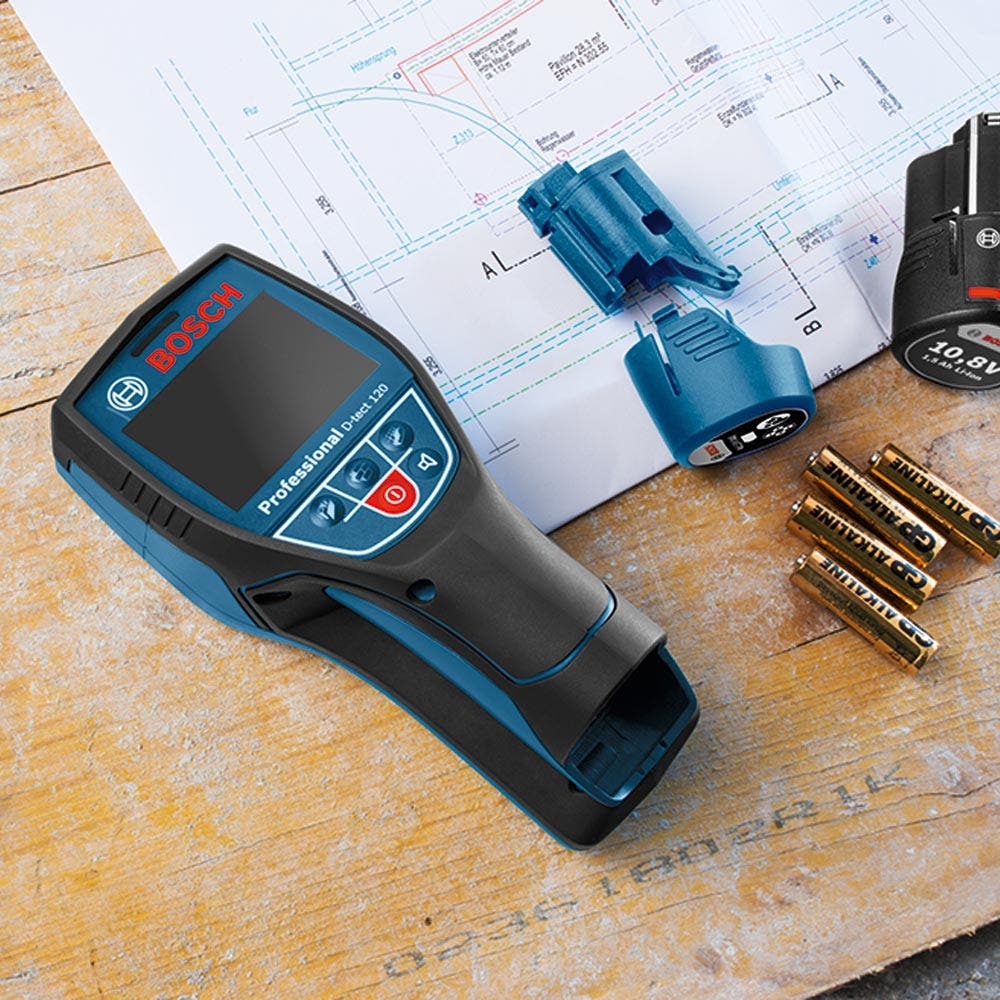

• Dual Power Source allows for use with a 12 V Li-ion battery or with standard alkaline batteries
• Reliable radar technology delivers great accuracy on wall, panel or floor
• Never requires calibration
• Can detect in any direction
• Three modes: drywall, universal and concrete
• The universal mode sees through more materials
• Audible and visual warning signals when objects are detected in the wall

Specifications:

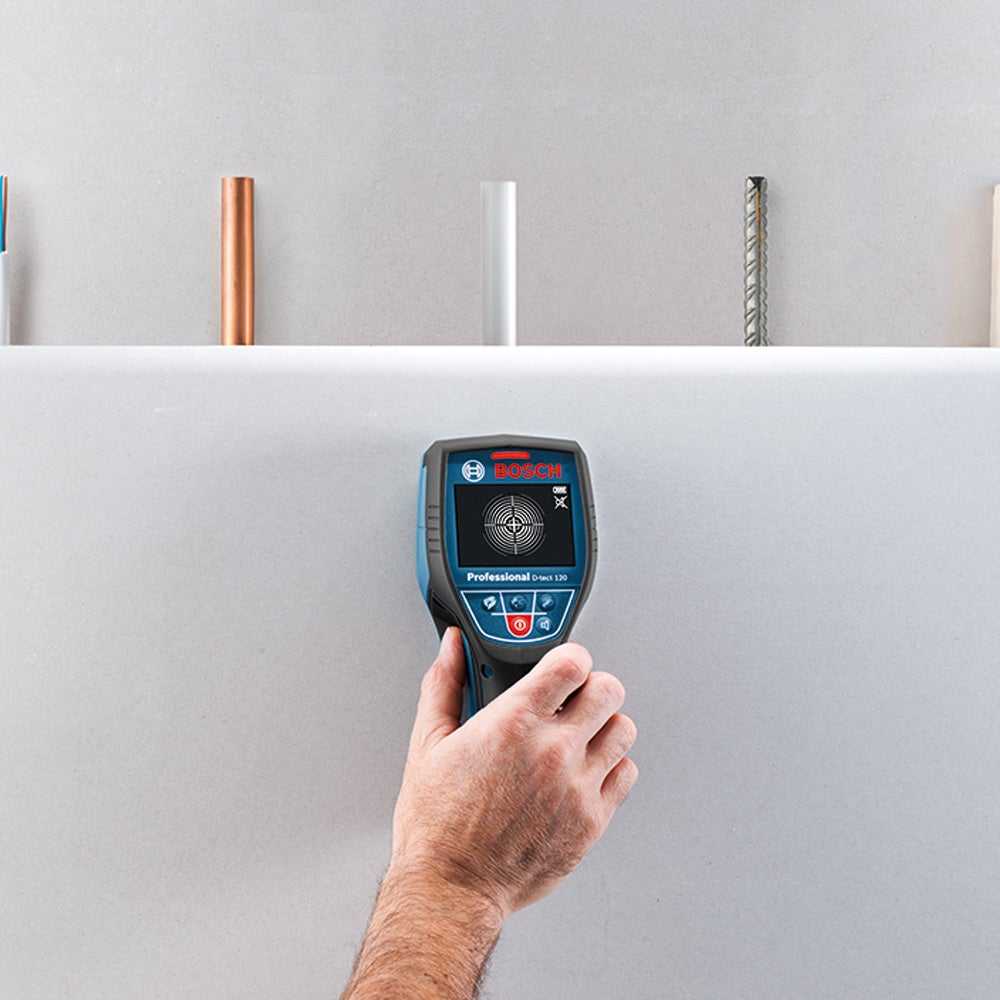

• Detectable materials: Water-filled plastic pipes, ferrous metals, non-ferrous metals, wooden studs, live cables
• Max. detection depth: 120 mm
• Detection depth, steel, max.: 120 mm
• Detection depth, copper, max.: 120 mm
• Detection depth of live cables, max.: 60 mm
• Detection depth of wooden substructures, max.: 38 mm
• Automatic deactivation, approx.: 5 minutes
• Power supply: 10.8 V Li-ion or 4 x 1.5 V LR6 (AA)
• Material: Plastic pipes (water-filled), Copper wires (live), Ferrous metals, Non-ferrous metals (copper)
• Detection depth, max.: 60 mm, 60 mm, 120 mm, 120 mm, 120 mm, 60 mm, 60 mm
• Mode: Concrete, Drywall construction, Universal mode
• Additional function: Dual Power (10.8 V/4 x 1.5 V LR6 AA); Centre finder with object direction indicator
