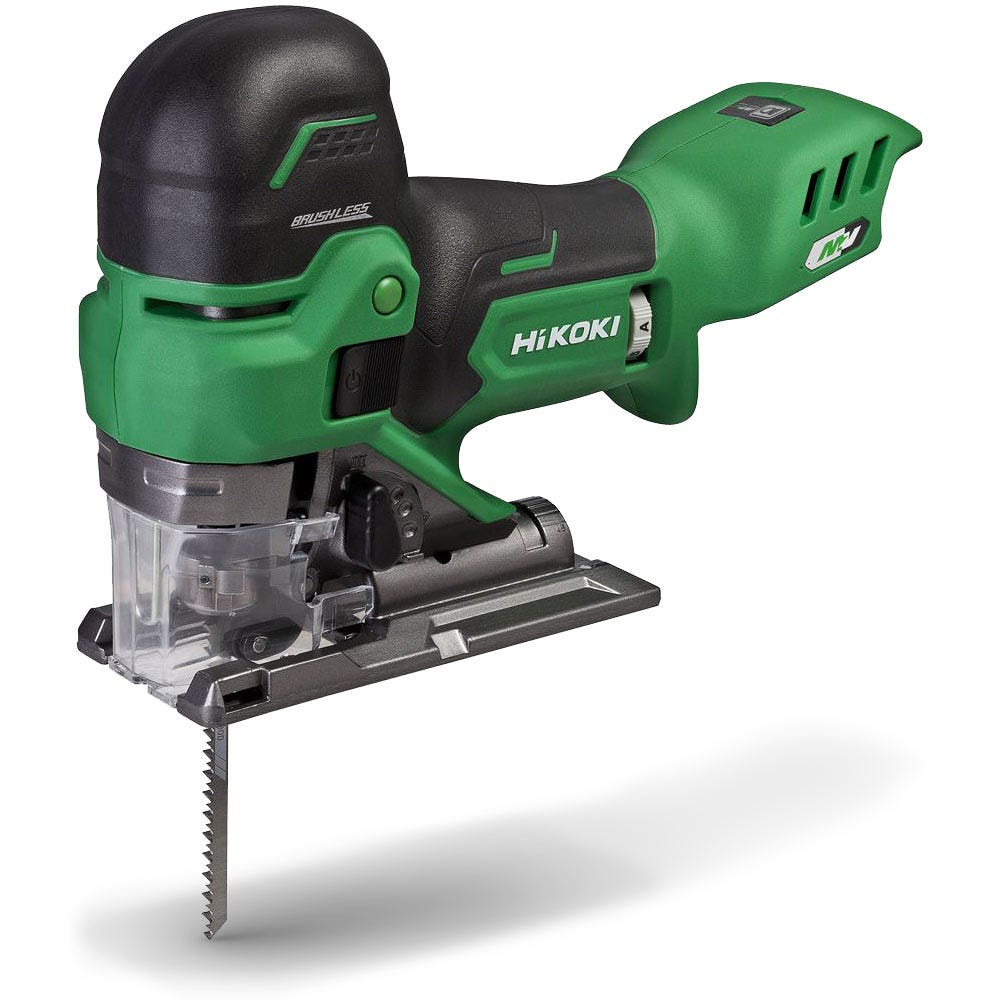

Suitable for cutting under high load, the HiKOKI 36V MultiVolt Brushless Jigsaw Skin with Top Handle (also available with Barrel-Grip Handle - CJ36DB H2Z) has the fastest cutting speed in its class, rated at 20% faster than other cordless jigsaws in the market! The low speed at startup makes it easy to align the blade with the cut line & features an LED light to illuminate the blade edge. This is a skin only, Battery & Charger sold separately.

• Brushless motor
• Tool-less blade change
• 4-stage orbital operation
• Auto Mode
• High cutting performance
• On-lock function to enable continuous work
• Constant speed control

Specifications

• Capacity
• Wood: 160mm
• Mild Steel: 10mm
• Stainless Steel: 3.2mm
• No-load speed
• Standard mode: 800 - 3,500 (min-1)
• Auto mode: 1,400 - 3,500 (min-1)
• Stroke: 26mm
• Minimum Cutting Radius: 25mm
• Maximum Cutting Radius: 45° (right and left)
• Type of Motor: Fan Cooled DC Brushless
• Type of Switch: Slide switch
• LED Light: White LED

Includes

• Jig Saw Blade No.41 (for wood)
• 4mm hex. bar wrench
• Chip Cover

Applications

• Cutting various timber and pocket cutting
• Cutting mild steel plate, aluminium plate, and copper plate
• Cutting synthetic resins, such as phenol resin and vinyl chloride
• Cutting thin and soft construction materials

*Battery and charger not included.
