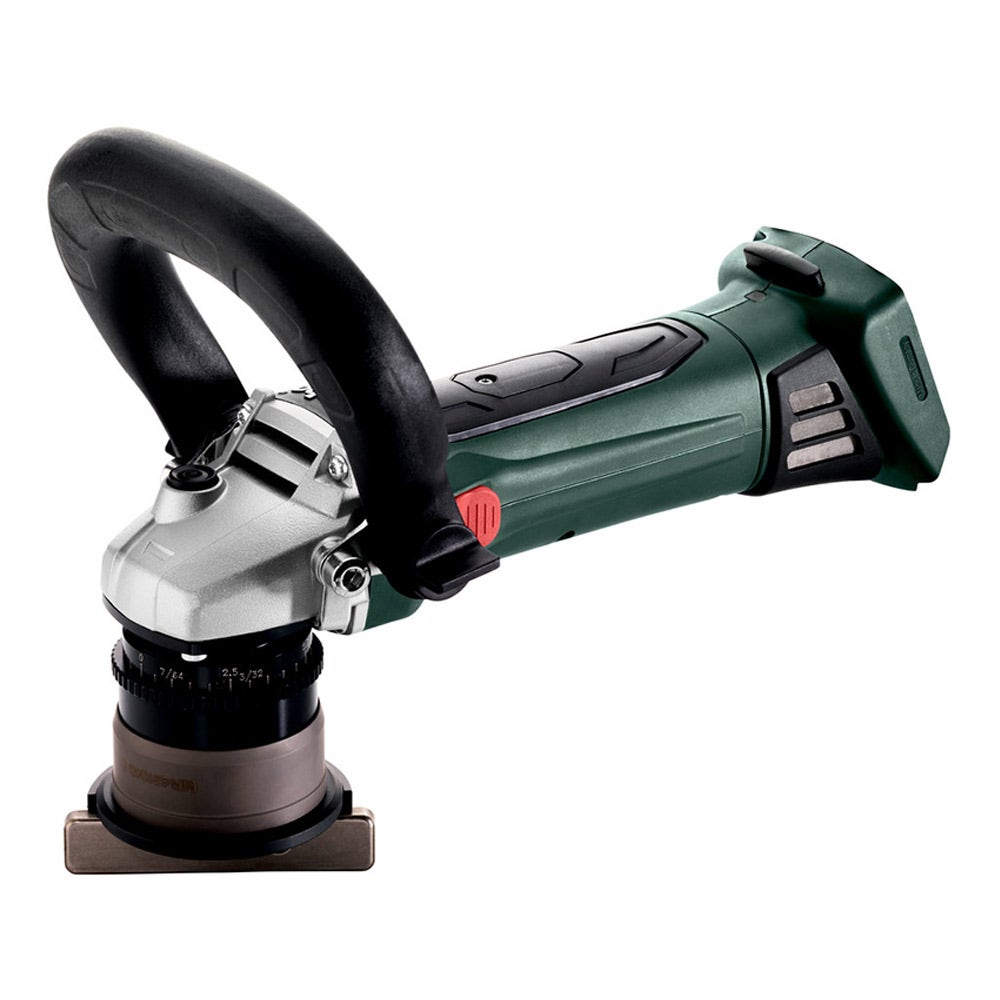

• The most powerful cordless metal bevelling tool for 45° chamfers up to 4 mm and radii of 2 and 3 mm
• Surfaces free from oxide and burrs as ideal preparation for the application of powder or paint coatings for maximum protection from corrosion
• One-touch controller: Patented, tool-free setting of the cutting depth in 0.1 steps; stop points for short setting times, and protection against unintentional adjustment of the cutting depth when working
• Slim milling head and ball bearing stationary seal ring for working in pipes and on curves
• Guide stop for a uniform finish and high quality of the surface when processing straight sheets
• Bail handle adjusts without tools for secure, even guiding
• Battery pack can be swivelled for better access in hard to reach places
• Overload protection: protects the motor from overheating
• Electronic soft start for smooth start-up
• Restart protection: prevents unintentional start-up after battery pack change
• Detachable dust protection filter protects motor from coarse particles
• With metaBOX, the intelligent solution for transport and storage
• Can be combined with all 18V battery packs and chargers of the CAS brands: www.cordless-alliance-system.com

Specifications

• Type of edges: Chamfer and radius
• Max. chamfer width 45°: 6 mm / 1/4 "
• Max. chamfer height at 45°: 4 mm / 5/32 "
• Possible radii: R2 / R3
• Grading of cutting depth setting: 0.1 mm / 0.00394 "
• Curves smallest internal Ø: 13 mm
• Noise emission:
  • Sound pressure level: 84 dB(A)
  • Sound power level (LwA): 95 dB(A)
  • Uncertainty of measurement K: 3 dB(A)

*Battery and charger not included.
