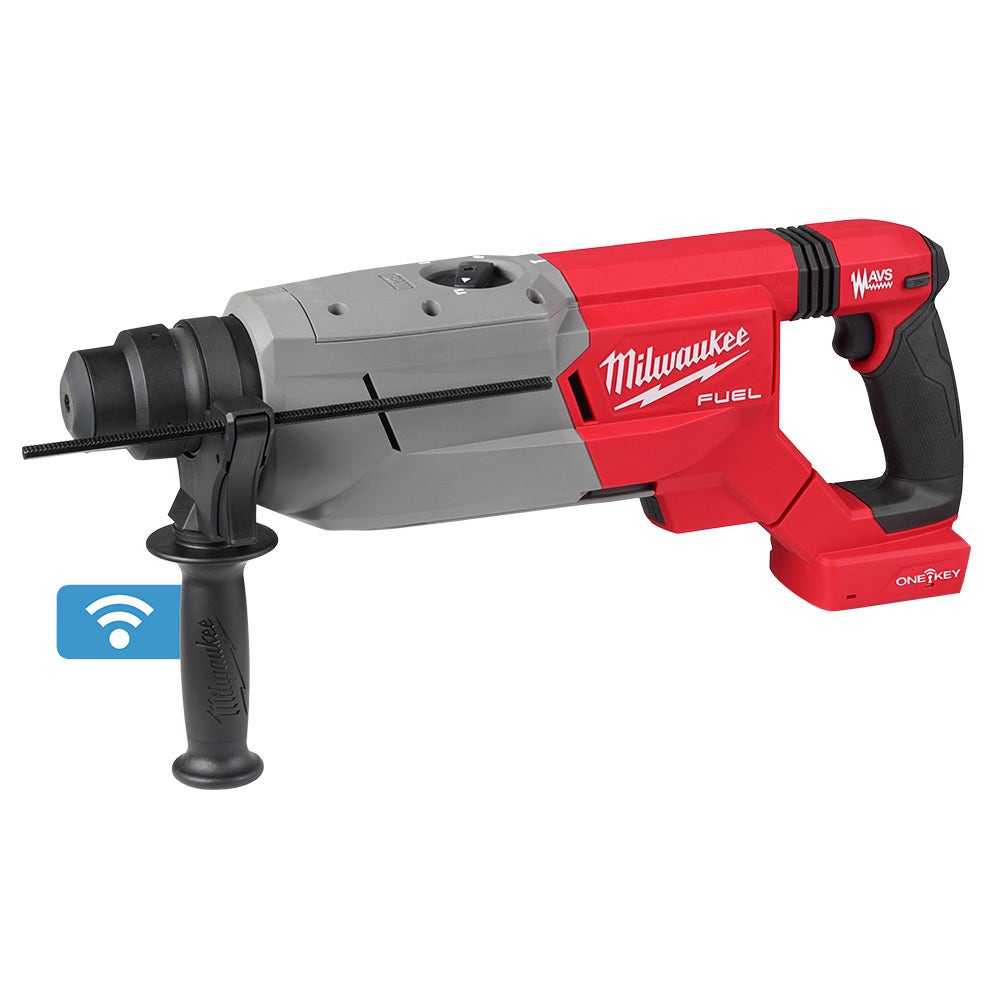

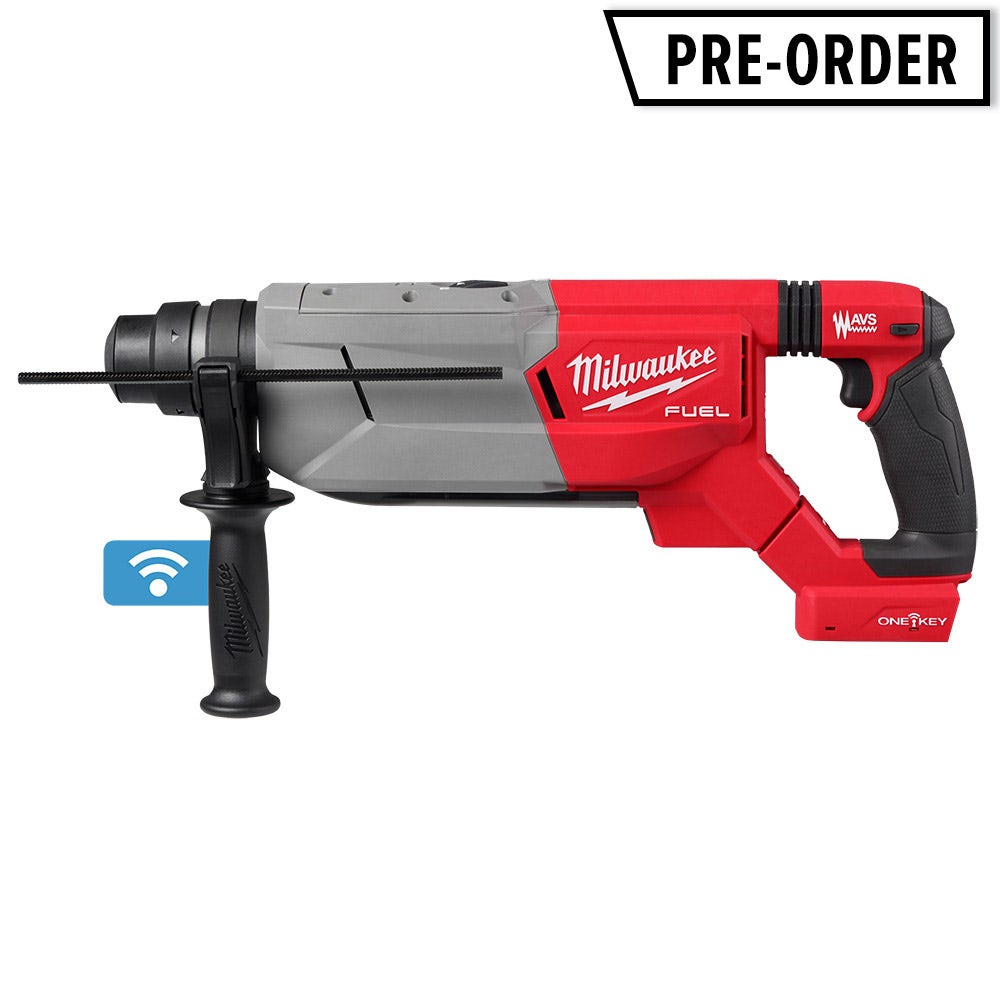

Powered by M18 FUEL™ technology, the M18 FUEL™ 32mm SDS Plus D-Handle Rotary Hammer with ONE-KEY™ delivers drill speeds normally associated with SDS Max rotary hammers. The hammer drills up to 32mm holes, is lightweight, includes AUTOSTOP™ control for enhanced safety and can drill up to 22, 19 x 102 mm holes per charge when paired with an M18HB6 M18™ REDLITHIUM™-ION HIGH OUTPUT™ 6.0Ah Battery. The in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. The POWERSTATE™ Brushless Motor delivers 4.9 J of impact energy, 810 RPM and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with the M18FDDEL32-0 M18 FUEL™ HAMMERVAC™ 32mm Dedicated Dust Extractor. The AVS Anti-Vibration System reduces vibration for maximum comfort and less fatigue. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge.

• Fast drilling to take 12.8 seconds to drill 19 mm (3/4”) x 102 mm (4”) hole in concrete with an M18HB6 battery
• Fast drilling at 4.9 J and 4,650 BPM
• Lightweight at 5.23 kg with an M18HB6 battery
• AUTOSTOP™ senses kickback and stops rotation
• AVS Anti-Vibration Systems
• ONE-KEY™ Tool Tracking & Management
• The ability to cut 22, 19 mm (3/4”) x 102 mm (4”) holes with an M18HB6 battery

Specifications

• Platform: M18 FUEL™ / ONE-KEY™
• Voltage: 18V
• Chuck Type: SDS Plus
• Max Capacity: 32mm (1-1/4”)
• Impact Energy: 4.9J
• RPM: 0 – 810
• BPM: 0 – 4,650
• Kickback Prevention: Yes
• Anti-Vibration: Yes

*Battery and Charger not included
