Precision TIG 225 welder features the widest welding range for automotive and motorsports TIG welding.

Features & Benefits

Get the widest operating range in its class (5 to 230 amps) with the durable Precision TIG 225. Experience enhanced starting, optimal arc stability and accomplish more precise welds and crater fills with our patented Micro-Start™ II technology. The 115V receptacles enable you to power a water cooler or other power tools. Ideal for small auto and fabrication shops and vocational training schools.

SIMPLE TO USE, EASY TO CUSTOMIZE

Simplicity

Easy-to-use operator interface - select mode, polarity and begin welding. When welding aluminum, AC Auto Balance® automatically provides for the optimal mix of cleaningand penetration.

Adjust for any situation: cleaning, penetration and pulse

When welding thicker material requiring increased penetration, or when requiring increased cleaning action to break through heavy oxide layers, bypass AC Auto Balance and adjust manually for full control.Enable the TIG pulser feature to minimize material distortion from excessive heat input. The TIG pulser can also help moderate filler metal deposition for consistent bead appearance.

Superior stick welder

Also offers outstanding stick welding capabilities, including the use of up to 5/32 in. (4.0 mm) electrodes - even with Fleetweld® 5P+ (E6010).

Process

Stick; TIG

Processes

Stick, TIG

Gas Hose Included

Yes

Digital Display

Yes

Dimensions (mm)(HxWxD)

20.7" x 14.5" x 25.6"

Dual Voltage

No

Duty Cycle

130A/40%; 110A/60%

Model

Precision TIG® 225

Output Range

5-230 Amps AC; 5-230 Amps DC5-230A DCMax OCV: 75V5-230A AC

Regulator Included

Yes

Weight (lb)

258 LB

Input Power

208/230/1/60

Input Current

60% Duty Cycle: 52/4740% Duty Cycle: 61/55|

Mode

CC

Polarity

AC/DC

Rated Output

110A/60%130A/40%

Typical Application

General fabrication; Automotive; Motorsports; Vocational schools; Hobby work

Dimensions

19.8in x 31.2in x 38in (503mm x 794mm x 966mm)

Warranty

3 Years

Weight

261lbs. (118.39kg)

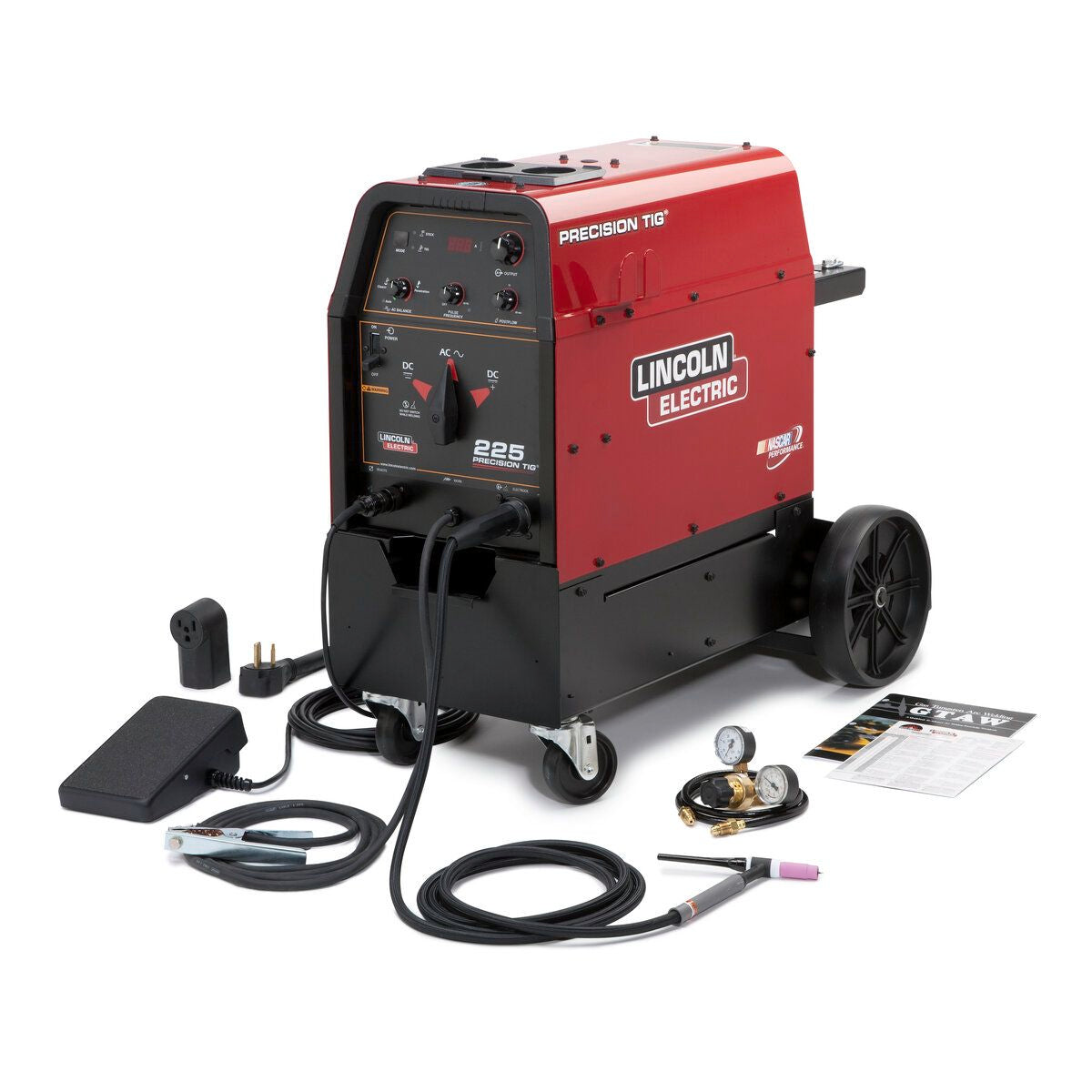

Order a Lincoln Ready-Pak® and get everything you need to complete a welding package - all with one order number. Shipped fully assembled.

• Torch Parts Storage Compartment
• Torch Hanger
• 10 ft. (3.0 m) Work Cable & Clamp
• Removable Lift Eye
• 9 ft. (2.7 m) Input Power Cord with NEMA 6-50P Plug
• NEMA 6-50R Receptacle
• TIG Procedure Guide
• GTAW (TIG) Handbook
• PTA-17 150 amp TIG torch w/ 1 pc. cable
  • 12 ft. (3.6 m) Ultra-Flex™ Cable
  • Twist Mate™ Adapter
  • 3/32 in. (2.4 mm) 2% Ceriated Tungsten
  • Collet & Collet Body
  • 7/16 in. (11.1 mm) Alumina Nozzle
• Long Back Cap
• Gas Regulator with Hose
• Foot Amptrol™ with 25 ft. (7.6 m) cable assembly (K870)
• Understorage Cart (K2348-1)
