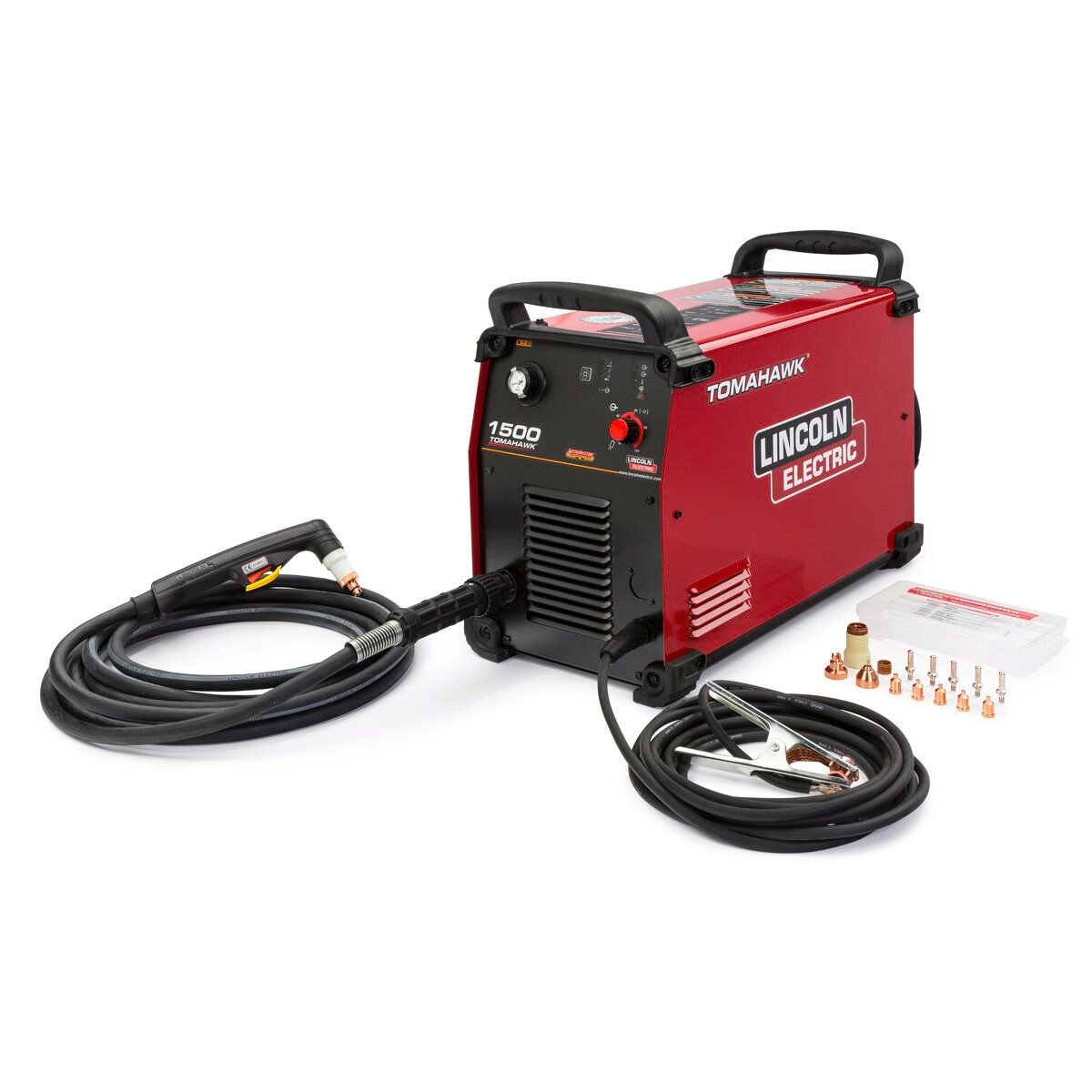

The Tomahawk 1500 plasma cutter is a heavy duty 100 amp plasma cutting power source for clean fast cuts.

Features & Benefits

Heavy-Duty, 100 Amps If you’re cutting fine artwork or fabricating steel parts in a production setting, you will need a plasma machine that will give you the cleanest and fastest cuts possible. Heavy duty at 100 amps, 60% Duty Cycle, the Tomahawk® 1500 plasma cutting power source brings power and flexibility to hand-held torch cutting applications.

Processes

Plasma Cutting & Gouging

Input Power

200-208/230/380/460/575/1/3/50/60

Input Current

31/28/16/14/12

Output Range

25-100A

Rated Output

25-100A @ 100%

Maximum Cut

1 1/4 in. (31.8 mm)

Recommended Cut

1 in. (25.4 mm)

Severance Cut

1 1/2 in. (38.1 mm)

Dimensions

11.8in x 17.9in x 25.4in (301mm x 455mm x 645mm)

Weight

105lbs. (47.628kg)

LC105 torch 50 ft. (15 m) lead (K2849-2) and cable with electrode | nozzle 100A | swirl ring | retaining cap (contact) | drag shield cap 100A, Tomahawk 1500 Plasma Cutter, Air regulator and pressure gauge, Internal water separator, Work clamp and 25 ft. (7.5 m) cable, Input power cord, Consumable Starter Kit for LC105 Torch (KP4141-20) includes (2) electrodes | (2) nozzles 100A | (1) swirl ring
