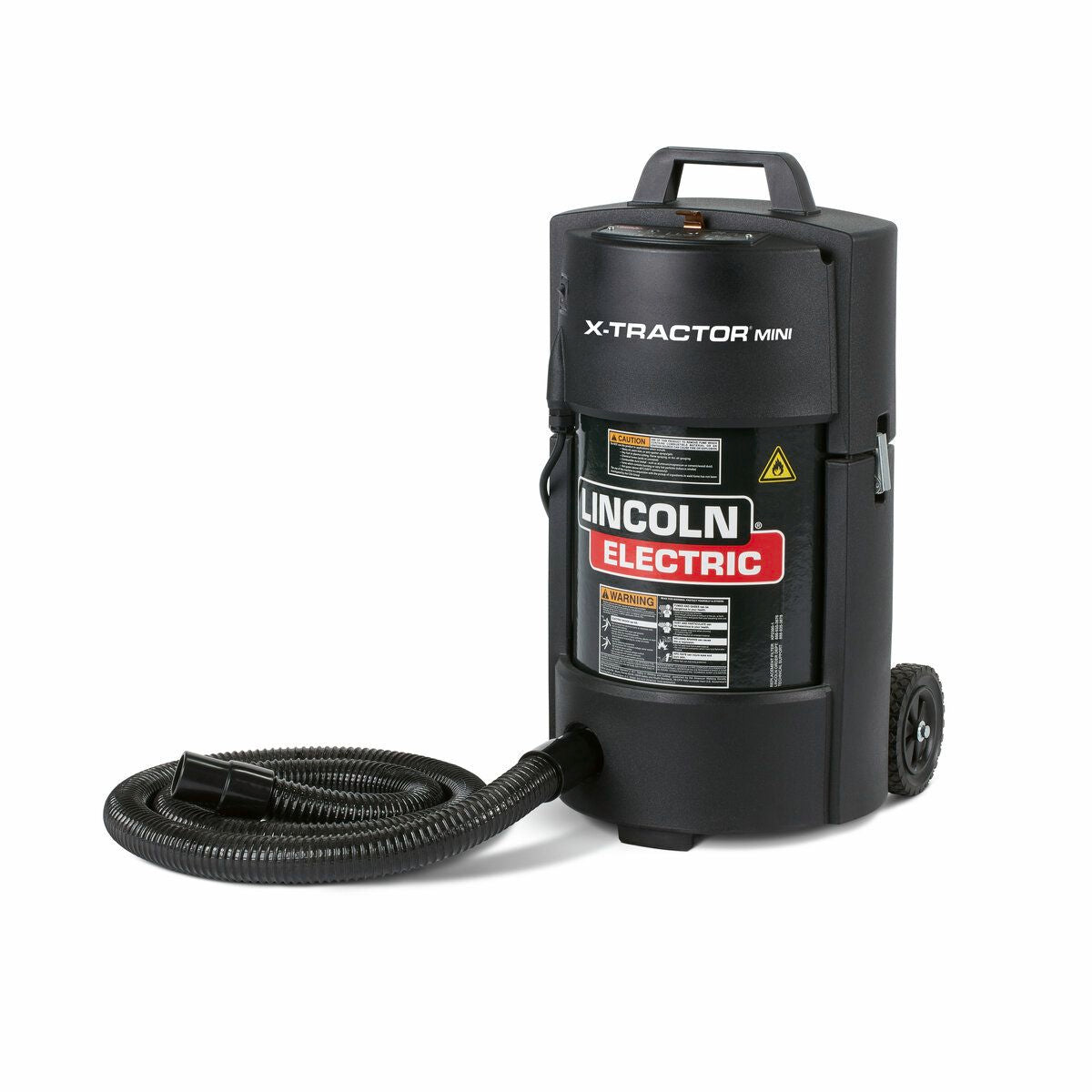

X-Tractor®Mini portable welding fume extractor is a high vacuum system for the removal and filtration of welding fumes from light duty welding applications.

Features & Benefits

FUMES DON’T STAND A CHANCE

The X-Tractor® Mini is a light weight; high vacuum portable fume extraction system designed to filter particulate and remove welding fumes. Intended for light duty welding applications; the quiet operation and portability of the Miniflex make this system an ideal solution for confined and hard to reach spaces.

•  Create a safer work environment for welders/shop employees
•  Effectively remove weld fume particulate with large surface area coverage and 99.7% filter unit efficiency
•  Light weight; durable construction and portable design
•  Compact size for use anywhere you go

• Weight

  40lbs. (18.144kg)

  Processes	Stick (Light Duty), TIG, MIG, Flux-Cored (Light Duty)
  Input Power	120/1/60
  Input Current	12.0A
  Sound Level	80 dBA
  Airflow CFM	Low 95 / High 108
  Power Rating HP	2.4 (1.2 / Motor)
  Filter Surface Area ft2 (m2)	118 (11)
  Dimensions H x W x L	29 in x 15.6 in x 16.8 in (736 mm x 396 mm x 427 mm)



  • Extraction Hose with adapter - 8 ft. (2.4 mm) length; 1-3/4 in. (45 mm) I.D.
  • LongLife-H™main filter
  • HEPA filter
  • Carbon Brushes (set of 2) and seals for motor
